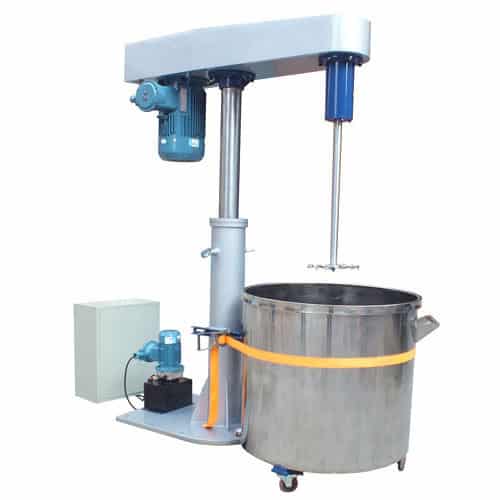

High Speed Disperser

hydraulic high speed disperser mixer

High Speed Disperser

Max. Loading Capacity
1000 L
Power
Up to 75 kW
Voltage
220 V/380 V
Minimum Order Quantity1


With the help of our distinguished professionals, we have established ourselves as a leading engaged in manufacturing, supplying and exporting a wide range of High-Speed Disperser. With our expertise of this domain, all the products offered by us are made using optimum-grade raw material sourced from the famed vendors base. Moreover, our professionals implemented latest tool and technology to examine

High Speed Disperser (Hydraulic Lifting) has dispersing and mixing function, which used for mass production; Equipment with inverter has stepless speed, can operate for a long time. It has stable running and low noise; Mixing disc is easy to be replaced, and can change different forms of dispersing discs according to production technology.Lifting structure adopts hydraulic cylinder as actuator, stable lifting, integrated hydraulic station, environmental and without leakage. It is an ideal grinding machine for materials with many varieties and many colors.

Material Viscosity: ≀50,000 cps

Production Capacity: 50-10,000L

Applied Materials: Suitable for many kind of liquid chemicals emulsion paint, industrial paint, ink and colorants, electrics battery pastes, etc.




Application Fields: Suitable for dispersing, mixing materials in industries such as biology, pharmacy, food, paint, ink, adhesives, pigment, fertilizer, etc.

– Stainless steel solid dispersion shaft
– Frequency inverter speed adjustable
– Safety hydraulic lifting system

High Speed Disperser Product Features:

Drive Head
A steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The drive head is of hinged type construction which can be opened for maintenance.
Main Shaft & Dispersing Disc
A SS 304 shaft duly machined and balanced is provided with a cowless disperser blade of special design for quick and efficient dispersion. The dispersers blade is made from special steel to withstand high wear and tear. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing.
Lifting & Lowering
The entire drive head and shaft is mounted on pneumatic lifting system which can be lifted and lowered to clear the height of the vessel.
Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 380 V / 50 Cycles / 3 Phase RPM 1500
Speed Inverter
An AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible
Electric Control Panel (Non-Ex proof)
A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.
Electric Control Panel (Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice. The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Cover for The Tank
The cover is attached with the shafts and lifted up and down together by hydraulic system
Vessel Locking Device (Optional)
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Vessel (Optional)
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.

Working Principle:

Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

Moveable mixing tank: mono layer or jacketed (used for cooling, heating or vacuum function). It can be customized accordingly.

ModelFS-15
Electric motor15KW Explosion proof
Mixing capacity500-1000L
LiftingHydraulic Lift
MaterialContact part: stainless steel
Non-contact part: carbon steel coated with antirust paint
Rotation Speed0-1450  RPM
Kind of packagePacked in Plywood case

Our Other Mixing Equipment: High Speed Mixer, Sigma mixer
