Double sigma blade mixer for high viscous adhesive,silicone rubber

Tags :

Double sigma blade mixer


Double sigma blade mixer widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, aluminum paste, silicone, sealant, also used in batteries, inks, pigments, dyes, pharmaceuticals, Plastics, rubber, cosmetics and other industries

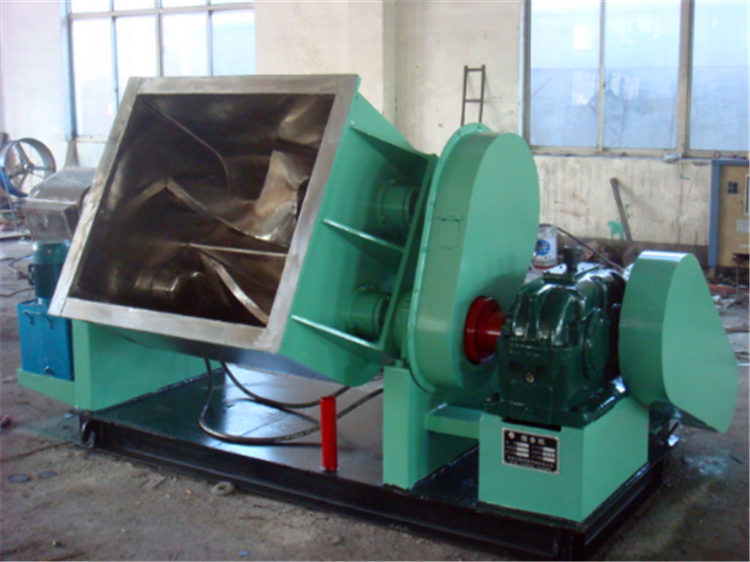

The Sigma blade mixer is consist of mixing chamber ,frame support ,hydraulic system ,electric control system, Discharge system And two Z shape blade in the chamber drove by the motor and the two blade rotating with different speed ,but can be control by the inverter .The sigma blade mixer caused by a pair of mutually cooperating and rotating Z blades to produce a strong shearing action so that the semi-dry state or the rubbery viscous plastic material enables the material to react quickly to obtain a uniform mixing After finished mixing ,The materials will follow the screw extruder at bottom of chamber. Screw out materials to another step

Abster Equipment company provide you with trusted quality and service based on our 20 years experience  and strong technical teams . For any queries ,please check our website to select right models  .

Salient Features

  • Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
  • Stainless Steel polish to matt & mirror finish as per customer’s requirements.
  • Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
  • Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
  • Jacket for heating or cooling application can be offered.
  • Mineral wool insulation with cladding on jacket.
  • Tangential designed ‘Z’ blades offered for uniform mixing.
  • PTFE made shaft sealing provided for food grade compatibility.
  • Minimum gap between trough inner shell & blades remove possibility of sticking product.
  • On demand Spray system, vacuum system

Optional Features/Accessories

  • Liquid Spray System
  • Vacuum System
  • Blades Cooling Arrangement
  • Screw System
  • Automatic Valve Discharge System

Technical Specification

Model Capacity – Litres Motor (H.P.)
Working Capacity Gross Capacity General Heavy Duty
ASM – 50 50 80 5 H.P. 7.5 H.P.
ASM – 75 75 110 7.5 H.P. 10 H.P.
ASM – 100 100 150 10 H.P. 15 H.P.
ASM – 150 150 200 15 H.P. 20 H.P.
ASM – 200 200 300 20 H.P. 25 H.P.
ASM – 400 400 550 30 H.P. 40 H.P.
ASM – 500 500 750 40 H.P. 50 H.P.
ASM – 750 750 1150 50 H.P. 60 H.P.
ASM – 1000 1000 1500 60 H.P. 70 H.P.
ASM – 1500 1500 2100 75 H.P. 80 H.P.
ASM – 2000 2000 2600 80 H.P. 90 H.P.
ASM – 3000 3000 3800 100 H.P. 120 H.P.


* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

  • -

Sigma mixer machine

Tags :

Sigma Mixer Machine Manufacturers And Suppliers In India

Sigma Mixer is a customarily used mixer, capaciously in the industrial sector for mixing high-viscosity materials which are difficult to be done manually. This efficient device is high in demand as it has extremely helped the industries in the recent years, giving wonderful service.
A Sigma Mixer Machine is ideally suited for mixing, shearing, folding, stretching, dividing, and kneading sticky highly viscous mass and dough-like materials, such as adhesives, polymers, chewing gum, chemicals, carbon pastes, ceramics, plastics, pharmaceuticals, metal powders, inks and pigment products, and numerous more materials like them.
Also known as a Kneader Mixer Machine, this heavy-duty mechanical apparatus comprises of two sigma blades fitted horizontally in a W-Shaped mixing vessel, which homogenize the material by rotating against each other and moving the materials thoroughly. As a result, what we obtain from this Sigma Kneader Mixer is a finely blended mixture with even consistency.
The very conventionally used Kneader Mixer for Paint, Solid propellants, and explosives with several other types are designed and manufactured by highly skilled expert professionals using latest set of skills and technology to make the device optimum for rendering
outstanding results.
Sigma mixer machine

 Sigma Mixer Machine Description


Today,there can be found a large variety of Sigma Mixer for Sale in innumerable sizes suitable for all the distinct applications at a completely affordable range of price. This productive range of Kneader Mixer for Sale offered are proficient to be used for wet granulation, dry granulation, powder mixing as well as crude fiber mixing operations.
Moreover, the size and specifications of Sigma Mixer can be smoothly adjusted and designed as per the customer’s needs and
requirements. If one wants to buy the durable and reliable mixer, then buying it from the honored manufacturers and suppliers in India would be the perfect choice to make, as they overlook to your demands even after the product sold, giving you steady service whenever needed. A Kneader Mixer is a bliss to all the manufacturing industries and is one of the superior mixing/kneading machine ever designed till date.
